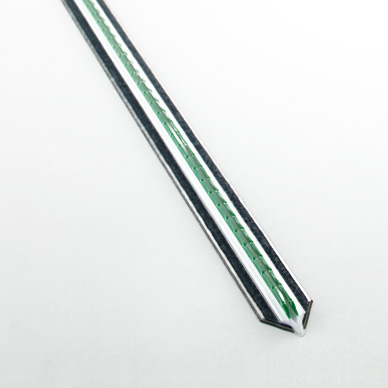

DAISO creasing matrix, G-TAPE, wins immense credibility for its performance of preventing cracks on creasing in the die-cutting process. With its wide range of selections as well as custom-made-sizes, G-TAPE can satisfy almost any demands from our customers. Installing G-TAPE is very easy, even for double-creasing. G-TAPE has passed hundreds of thousands of punch test, and works perfectly for 200,000 to 300,000 presses in normal use. G-TAPE can be used up to half a million presses without a set-change.
SPECIFICATION TABLES
| Item code | Thickness | Creasing width | Minimum quantity |
|---|---|---|---|
| B-0622 | 0.6 | 2.2 | 50 |
| B-0624 | 0.6 | 2.4 | 50 |
| B-0627 | 0.6 | 2.7 | 50 |
| B-0630 | 0.6 | 3.0 | 50 |
| B-0632 | 0.6 | 3.2 | 50 |
| B-0635 | 0.6 | 3.5 | 50 |
| B-0640 | 0.6 | 4.0 | 50 |
| *B-0645 | 0.6 | 4.5 | 50 |
| B-0650 | 0.6 | 5.0 | 50 |
| B-0827 | 0.8 | 2.7 | 50 |
| B-0830 | 0.8 | 3.0 | 50 |
| B-0832 | 0.8 | 3.2 | 50 |
| B-0835 | 0.8 | 3.5 | 50 |
| B-0840 | 0.8 | 4.0 | 50 |
| *B-0845 | 0.8 | 4.5 | 50 |
| B-0850 | 0.8 | 5.0 | 50 |
| B-0860 | 0.8 | 6.0 | 50 |
| B-1030 | 1.0 | 3.0 | 50 |
| B-1032 | 1.0 | 3.2 | 50 |
| B-1035 | 1.0 | 3.5 | 50 |
| B-1040 | 1.0 | 4.0 | 50 |
| *B-1045 | 1.0 | 4.5 | 50 |
| B-1050 | 1.0 | 5.0 | 50 |
| B-1060 | 1.0 | 6.0 | 50 |
