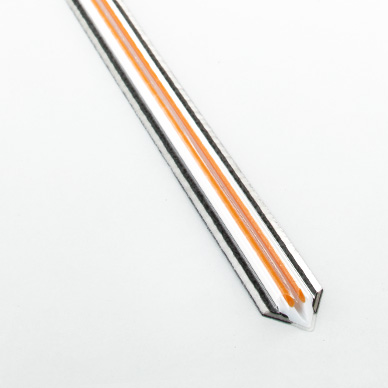

DAISO creasing matrix, G-TAPE, wins immense credibility for its performance of preventing cracks on creasing in the die-cutting process. With its wide range of selections as well as custom-made-sizes, G-TAPE can satisfy almost any demands from our customers. Installing G-TAPE is very easy, even for double-creasing. G-TAPE has passed hundreds of thousands of punch test, and works perfectly for 200,000 to 300,000 presses in normal use. G-TAPE can be used up to half a million presses without a set-change.
SPECIFICATION TABLES
| Item code | Thickness | Creasing width | Minimum quantity |
|---|---|---|---|
| C-0640 | 0.6 | 4.0 | 50 |
| C-0832 | 0.8 | 3.2 | 50 |
| C-0835 | 0.8 | 3.5 | 50 |
| C-0840 | 0.8 | 4.0 | 50 |
| *C-0845 | 0.8 | 4.5 | 50 |
| C-0850 | 0.8 | 5.0 | 50 |
| C-0860 | 0.8 | 6.0 | 50 |
| C-1040 | 1.0 | 4.0 | 50 |
| *C-1045 | 1.0 | 4.5 | 50 |
| C-1050 | 1.0 | 5.0 | 50 |
| C-1060 | 1.0 | 6.0 | 50 |
