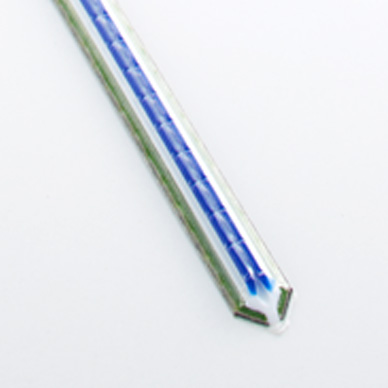

DAISO creasing matrix, G-TAPE, wins immense credibility for its performance of preventing cracks on creasing in the die-cutting process. With its wide range of selections as well as custom-made-sizes, G-TAPE can satisfy almost any demands from our customers. Installing G-TAPE is very easy, even for double-creasing. G-TAPE has passed hundreds of thousands of punch test, and works perfectly for 200,000 to 300,000 presses in normal use. G-TAPE can be used up to half a million presses without a set-change.

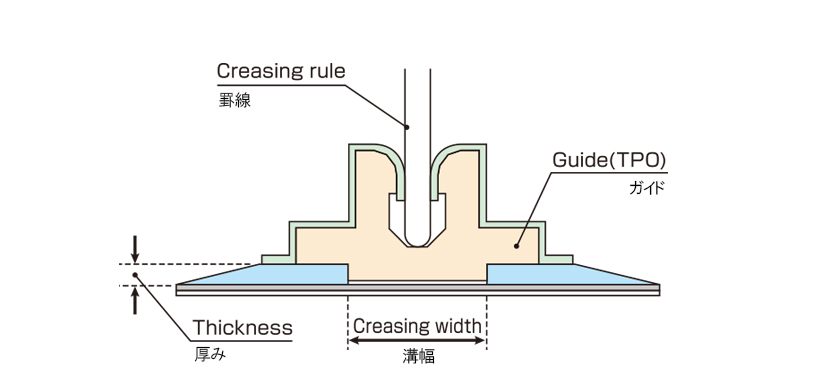

SPECIFICATION TABLES
| Item code | Thickness | Creasing width | minimum of lot |
|---|---|---|---|
| M-0408 | 0.4 | 0.8 | 100 |
| M-0410 | 0.4 | 1.0 | 100 |
| M-0411 | 0.4 | 1.1 | 100 |
| M-0412 | 0.4 | 1.2 | 100 |
| M-0413 | 0.4 | 1.3 | 100 |
| M-0414 | 0.4 | 1.4 | 100 |
| M-0415 | 0.4 | 1.5 | 100 |
| M-0416 | 0.4 | 1.6 | 100 |
| M-0417 | 0.4 | 1.7 | 100 |
| M-0419 | 0.4 | 1.9 | 100 |
| M-0513 | 0.5 | 1.3 | 100 |
| M-0514 | 0.5 | 1.4 | 100 |
| M-0515 | 0.5 | 1.5 | 100 |
| M-0516 | 0.5 | 1.6 | 100 |
| M-0517 | 0.5 | 1.7 | 100 |
| M-0518 | 0.5 | 1.8 | 100 |
| M-0519 | 0.5 | 1.9 | 100 |
| M-0520 | 0.5 | 2.0 | 100 |
