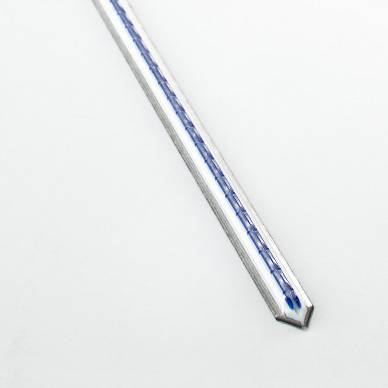

DAISO creasing matrix, G-TAPE, wins immense credibility for its performance of preventing cracks on creasing in the die-cutting process. With its wide range of selections as well as custom-made-sizes, G-TAPE can satisfy almost any demands from our customers. Installing G-TAPE is very easy, even for double-creasing. G-TAPE has passed hundreds of thousands of punch test, and works perfectly for 200,000 to 300,000 presses in normal use. G-TAPE can be used up to half a million presses without a set-change.

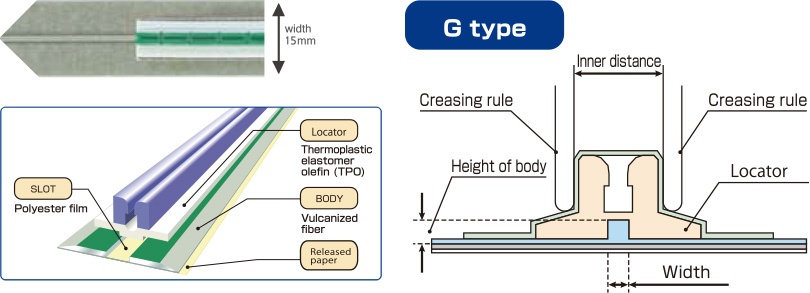

SPECIFICATION TABLES
| Item code | Thickness | Inner distance | Width | Minimum quantity |
|---|---|---|---|---|
| G-1 | 0.6 | 1.7 | 0.7 | 50 |
| G-2 | 0.8 | 2.4 | 1.0 | 50 |
| G-3 | 1.0 | 3.0 | 1.5 | 50 |
| G-4 | 1.0 | 4.0 | 2.0 | 50 |
| G-5 | 1.0 | 5.0 | 3.0 | 50 |
| *G-6 | 1.0 | 6.0 | 3.0 | 50 |
